DIY Carbon Fiber Wall Repair Kit — 60ft of Unidirectional Foundation Wall Reinforcement
The NextStar NX1614 is a complete professional-grade DIY kit engineered to permanently stabilize bowing, cracked, or failing poured concrete and concrete block (CMU) foundation walls. It uses true unidirectional 300GSM carbon fiber with a tensile strength of 4,100 MPa — roughly 7 to 10 times the tensile strength of structural steel — bonded to the wall with StarTech structural epoxy. Installed correctly, the concrete fails before this repair system does.
Unlike contractor-only systems sold through distributors, this kit is bought online, shipped to the USA and Canada, and backed by free NextStar technical phone support throughout your installation. It is installed entirely from the basement interior in a single day — no excavation, no steel beams, no lost floor space.
Free technical support — call 1-866-445-3984 any time during your installation.
How Much Wall Does the 60ft Kit Cover?
The kit supplies 60ft of uncut unidirectional carbon fiber, so you cut each strap to match your own wall height. Carbon fiber straps are installed at the industry-standard spacing: the first strap 4ft in from each corner, then every 4ft on-center across the wall.
Because strap length equals your wall height — typically 7.5ft to 9ft — the number of straps you get from one kit depends on your ceiling height:
- 8ft walls: 60ft yields about 7 full-height straps
- 9ft walls: 60ft yields about 6 full-height straps
- Shorter / crawlspace walls: 60ft yields more straps
To estimate your own wall: divide 60 by your wall height in feet to get your strap count, then check it covers your wall length at 4ft spacing. Need more coverage? Upgrade to 90ft of carbon fiber at checkout for larger walls or full-perimeter repairs. Not sure? Call 1-866-445-3984 and we will size it for your wall.
What Is Included in Kit NX1614
60ft of 8-inch wide uncut 300GSM unidirectional carbon fiber — enough for approximately 6 to 8 full-height straps depending on wall height
4.8 quarts of StarTech Carbon Fiber Epoxy Resin
Roller tray, rollers, gloves and miscellaneous application tools
10 concrete anchors for fabric installation
Free 4.5 inch diamond concrete cup wheel for hand grinder — 1 per order
Printed installation instructions
Free technical support — 1-866-445-3984
Low cost shipping to Canada and USA
Kit Upgrades and Options Available
Upgrade to 90ft of Carbon Fiber — covers approximately 10 to 12 straps for larger walls or full perimeter repairs. Add $343.00 USD at checkout.
Upgrade to 5 inch Diamond Cup Wheel — for larger grinders. Add $20.00 USD at checkout.

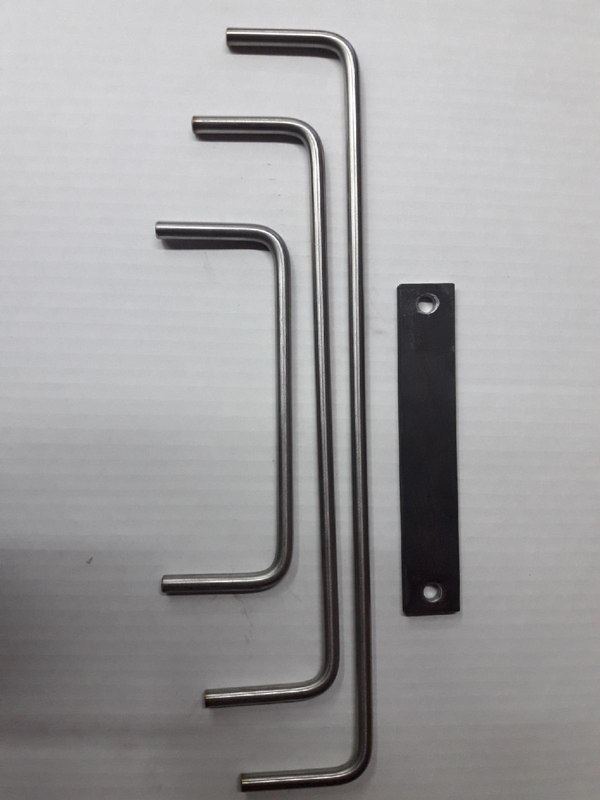

Optional top and bottom wall anchors — for block walls or walls showing top-of-wall movement, anchoring the strap to the sill plate and footing engages the full tensile strength of the fiber. Ask about anchor options when ordering.
Need a custom kit? Call 1-866-445-3984 and we will build the right configuration for your specific wall.
Carbon Fiber vs Steel Beams vs Wall Anchors
For a qualifying foundation wall — bowing under 2 inches, sound substrate, no active shear failure — carbon fiber matches or beats steel on restraint while costing less, taking less time, and never corroding. This is the comparison most homeowners are weighing:
| Factor |
Carbon Fiber Straps |
Steel I-Beams |
Wall Anchors |
| Tensile strength |
4,100 MPa fiber — 7 to 10x steel |
Structural steel baseline |
Steel rod in tension |
| Excavation |
None — interior install |
None |
Exterior dig required |
| Install time |
Single day |
Multi-day |
Multi-day |
| Floor space lost |
None — 1 to 3mm flat profile |
Beams protrude 2 to 4 inches |
Interior plates protrude |
| Corrosion |
Non-corrosive, permanent |
Rusts in wet basements |
Rusts, needs re-tensioning |
| Finish over it |
Paint or drywall directly |
Blocks finishing |
Blocks finishing |
| DIY installable |
Yes — with this kit |
No — contractor only |
No — contractor only |
For walls bowed more than 2 inches or actively shearing, steel or a combined approach may be required first — call our technical line and we will tell you honestly whether carbon fiber is right for your wall.
What to Look For in a DIY Carbon Fiber Kit
Not all carbon fiber wall kits are equal. Three things separate a kit that holds from one that fails, and they are the questions worth asking before you buy any brand:
| What matters |
Why it matters |
NextStar NX1614 |
| Fiber orientation |
Unidirectional resists load with no crimp; woven fiber must straighten first and loses stiffness |
True unidirectional |
| Documented strength |
A real tensile figure, not just "stronger than steel" |
4,100 MPa, third-party ASTM tested |
| Epoxy included and matched |
The bond is the repair; mismatched resin is the common failure point |
StarTech structural epoxy included |
| Real support |
DIY installs go wrong without someone to call |
Free phone support, every step |
The structural performance of NextStar carbon fiber has been verified through third-party ASTM testing conducted by our material supplier. Test data sheets are available on request for engineers and inspectors.
Why Unidirectional Carbon Fiber Outperforms Bidirectional Systems
Most carbon fiber foundation repair kits use bidirectional woven fiber. While it looks substantial, it is structurally inferior for wall reinforcement. Woven fibers crimp at every crossover point and must straighten before resisting load — which delays and reduces the repair's effectiveness. For a bowing foundation wall where immediate stiffness is critical, bidirectional fiber is the wrong specification.
The NX1614 uses true unidirectional 300GSM carbon fiber. Every fiber runs parallel and lies completely flat. When lateral soil pressure is applied, the fibers resist force immediately with no crimping and no strength loss. The result is a wall reinforcement system that delivers its full rated stiffness from the first moment of load — the property that actually stops a bowing wall.
Is This Kit Right for Your Wall?
Poured concrete walls: Ideal for walls that have cracked vertically or horizontally. Carbon fiber straps installed every 4ft permanently reinforce the wall and prevent re-cracking after epoxy injection repair.
Concrete block (CMU) walls: Ideal for block walls showing horizontal mortar joint cracking due to lateral soil pressure. Install at 4ft centers. For severely bowed or heavily loaded block walls, consider our 12-inch wide unidirectional carbon fiber system for an even larger load distribution area.
Watch the full installation video
Step-by-Step Installation Instructions
Step 1 — Plan strap locations. Measure the wall and mark each strap position so no two straps exceed 4ft spacing, starting 4ft from each corner. Always place straps on both sides of window openings. Sketch your full layout before starting to grind.
Step 2 — Grind the wall surface. Using a hand grinder with the included 4.5 inch diamond cup wheel and a dust shroud connected to a vacuum, grind a 9-inch wide strip from top of wall to floor at each strap location. This exposes fresh clean concrete essential for epoxy adhesion. Grinders with dust shrouds are available at most equipment rental shops.
Step 3 — Vacuum thoroughly. Vacuum all ground areas completely before applying any epoxy. Any dust remaining on the surface will prevent proper bonding and compromise the repair.
Step 4 — Apply epoxy to the wall. Mix StarTech Carbon Fiber Resin epoxy per the supplied instructions and apply evenly to the prepared wall surface using the roller.
Step 5 — Apply epoxy to the carbon fiber strap. Apply epoxy to the wall-side face of the cut carbon fiber strap immediately before placing it on the wall.
Step 6 — Place the strap. Press the carbon fiber strap firmly onto the epoxied wall surface, aligning it vertically within the prepared strip. Work out any air bubbles or lifted edges.
Step 7 — Saturate and consolidate. Apply additional epoxy over the face of the strap and use a trowel to firmly press and work the resin through the carbon fiber, fully saturating every fiber. Repeat for all remaining strap locations.
Questions during installation? Our technical support team is available at 1-866-445-3984 at no charge throughout your project.
Common Questions About Carbon Fiber Wall Repair
Q. How many straps will the 60ft kit make?
A. It depends on your wall height, because each strap runs floor to sill. Divide 60ft by your wall height: an 8ft wall yields about 7 straps, a 9ft wall about 6. Straps install 4ft from each corner and every 4ft on-center. Upgrade to 90ft for larger walls.
Q. How much stronger than steel is carbon fiber?
A. The unidirectional carbon fiber in this kit has a tensile strength of 4,100 MPa — roughly 7 to 10 times the tensile strength of structural steel — at a fraction of the weight and with no corrosion. Strength has been verified by third-party ASTM testing through our supplier.
Q. Why is carbon fiber spaced at 4ft on foundation walls?
A. This is an industry and engineering standard — the same spacing used for steel beam wall support systems. It applies regardless of brand or product and is not arbitrary.
Q. Is closer than 4ft spacing better?
A. Yes. Closer spacing increases reinforcement and is beneficial where concrete is weak, the repair area is small, or cracking is extensive.
Q. Do I need a metal plate at the top of each carbon strap?
A. It depends on wall type. On block walls a plate or anchor can attach the strap to the sill plate. On poured concrete walls with an intact floor slab it is often not needed. Optional top and bottom anchors are available — call us to discuss your wall.
Q. Can a homeowner install this kit without a contractor?
A. Yes. This kit is installed successfully by homeowners every day. Four rules: do not exceed 4ft strap spacing, grind the wall to expose fresh concrete, apply enough epoxy to fully saturate the strap, and call our free support line at 1-866-445-3984 if you have any questions.
Q. What is the purpose of the bottom wall anchors?
A. In most installs anchors are optional. For CMU block walls they act as shear pins to prevent the bottom block course from sliding inward. If the basement floor is poured tight against the bottom course, shear movement is unlikely and anchors are not needed.
Q. How is the carbon fiber supplied and how do I cut it?
A. The carbon fiber arrives as an uncut roll. Cut straps to length with sharp scissors on any flat surface — no special tools required.
Q. Can I place two straps side by side instead of a wider strap?
A. Yes. Two unidirectional straps placed side by side perform identically to a single strap of combined width.
Q. How does a carbon fiber strap stop a bowing wall?
A. The epoxy-bonded strap transfers lateral soil pressure loads across any cracks and distributes them to a much larger wall area. This immediately stabilizes the wall against further inward movement and prevents existing cracks from widening or propagating.
Q. Why is unidirectional carbon fiber stronger than bidirectional for this repair?
A. Bidirectional woven fiber crimps at every crossover point and must partially straighten before resisting load, losing strength in the process. Unidirectional fiber has no crimps — all fibers align immediately under load for maximum stiffness. For a bowing wall repair, stiffness is the critical variable.
Q. How long do carbon fiber straps last?
A. Carbon fiber bonded with epoxy to properly prepared concrete lasts the life of the structure. Carbon fiber does not rust, rot, corrode, or degrade over time.
Q. Can I apply straps in two directions for multi-directional cracking?
A. Yes. Apply one layer vertically and one horizontally with layers overlapping, providing reinforcement in two axes while maintaining the stiffness advantage of unidirectional fiber.
Q. How do I repair a failed foundation corner with carbon fiber?
A. Expose the exterior corner and apply straps horizontally, wrapping around the corner, minimum 8ft long at 2 to 4ft vertical spacing. Protect any epoxy exposed above grade from UV degradation with paint or cement parging.
Pro Installation Tips
1. Strap the entire affected wall rather than just the visibly cracked section. Reinforcing only part of a wall shifts stress concentration to the unstrapped areas.
2. Always place straps on both sides of every window opening. Window openings are stress concentration points and the most common location where wall movement originates.
3. Do not exceed 4ft on-center strap spacing, but closer is always better. If a window sits 3ft from a corner, place your first strap at 3ft to keep all spacing within the 4ft maximum.
4. Fill all cracks in the strap zone with epoxy injection (poured walls) or cement grout before applying carbon fiber (block walls). Strapping over an unfilled crack traps the void and reduces bonding effectiveness.
5. Horizontal cracks under window openings can be strapped horizontally beneath the opening, tying into the nearest vertical straps on each side.
6. If floor joists or the top sill plate are showing signs of sliding inward, top-of-wall anchoring is required in addition to the vertical carbon fiber straps. Call us at 1-866-445-3984 to discuss the right solution.
7. For exterior corner repairs, install straps horizontally on the outside face of the corner at 2 to 4ft vertical spacing. Protect all epoxy above grade from UV with paint or cement parging.
Limited Lifetime Warranty
The NX1614 Carbon Fiber Wall Repair Kit is backed by a limited lifetime warranty on materials. Free technical support is available throughout your installation at 1-866-445-3984.
